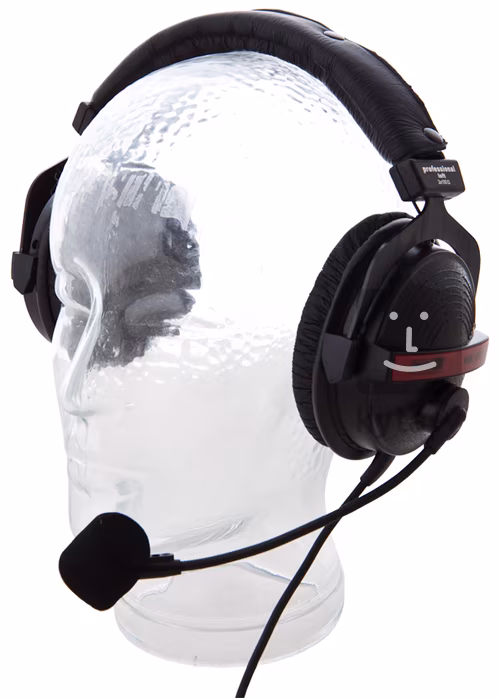

Superlux HMC 660 X

Created especially for on-air news & sports broadcasting, announcing & interviews, this rugged stereo headset offers natural, highly intelligible and focused vocal reproduction, closed-back circumaural (around-the-ear) ear cups to seal out background noise, and a high-output dynamic microphone mounted on a flexible gooseneck boom.

The headset’s microphone has a cardioid polar pattern tailored for pickup of speech with maximum voice intelligibility over a wide range of frequencies. It is more sensitive to sound originating directly in front of the element, making it useful in reducing pickup of unwanted sounds. The flexible gooseneck boom swivels for easy positioning on either the right or left side.

Microphone features polar pattern and frequency response tailored for natural, highly intelligible vocal reproduction

Closed-back circumaural ear cups help seal out crowd noise and other background distractions

Neodymium magnets in microphone and headphones for high output level & detailed sound reproduction

Cardioid pickup pattern of the dynamic microphone rejects off-axis sounds

Boom-mounted microphone can be positioned on the left or right side

Adjustable cushioned headband and lightweight design for long-wearing comfort

Rugged design with user-replaceable cable and ear pads

Detachable cable (BPCB1) terminates in 3-pin XLRM-type connector for microphone and 1” 3-conductor for headphone

SPECIFICATIONS

TYPE Closed-back Dynamic (Headphone)

Cardioid Dynamic (Microphone)

DRIVER DIAMETER 40 mm (Headphone)

MAGNET Neodymium (Headphone)

VOICE COIL Copper-clad aluminum wire

FREQUENCY RESPONSE 20-20,000 Hz (Headphone)

40-20,000 Hz (Microphone)

MAXIMUM INPUT POWER 1,600 mW at 1 kHz

SENSITIVITY 100 dB (Headphone)

-57 dB (1.4 mV) re 1V at 1 Pa (Microphone)

IMPEDANCE 65 ohms (Headphone)

560 ohms (Microphone)

WEIGHT 264 g (9.3 oz)

DIMENSIONS 82.0 mm (3.23") wide (earcup);

46.0 mm (1.81") wide (headband);

180.1 mm (7.09") long (boom), microphone extended;

24.0 mm (0.94") diameter (microphone)

CABLE 3.3 m (10.8') long with 8-pin connector at headset end; 3-pin XLRM-type connector (microphone) and 6.3 mm (1/4") phone plug (headphone) outputs

ACCESSORIES INCLUDED 3 windscreens; spare connector screw
