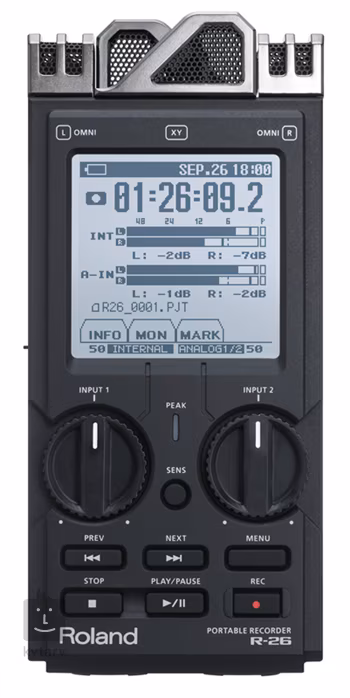

Two types of built-in stereo microphones (omnidirectional and directional) that can be used in various combinations
Two XLR/TRS combo inputs with 48 V phantom power, plus an input for a stereo plug-in powered mic
Supports up to six channels (three stereo channels) of simultaneous recording
Large LCD touchscreen display for intuitive navigation
Large input-level knobs for fine adjustment
Built-in Hi-Speed USB interface for use as an audio interface or external storage
Loop-Back function; combine this with the built-in or external mics for the optimum live video streaming setup (only with Audio Interface function)
Bundled with SONAR LE software (PC)
Tracks 6 (3 stereo)
Signal Processing AD/DA conversion: 24 bits, 96/88.2/48/44.1 kHz
Data Type For Recording
WAVE/BWF: Sampling Rate: 96/88.2/48/44.1 kHz, Bit Depth: 24/16 bits
MP3 (MPEG-1 Audio Layer 3): Sampling Rate: 48/44.1 kHz, Bit Rates: 320/160/128 kbps
WAVE + MP3: Sampling Rate: 48/44.1 kHz, Bit Depth: 16 bits, Bit Rates: 128 kbps
For Playback
WAVE: Sampling Rate: 96/88.2/48/44.1 kHz, Bit Depth: 24/16 bits
MP3 (MPEG-1 Audio Layer 3): Sampling Rate: 48/44.1 kHz, Bit Rates: 32-320 kbps or VBR (Variable Bit Rate)
Memory Card SD Card (SDHC format compatible)
Recording Time
(unit: hours)
* Each recording time is approximate. The times may change depending on the card specifications.
* In case that there are plural files, the sum of recording time would be shorter than above.
Input/Output
Audio Inputs Internal Stereo Microphones: Omnidirectional (OMNI) mic, Directional (XY) mic
Analog inputs 1/L, 2/R (XLR/TRS Combo type): XLR type (phantom powered), 1/4-inch TRS phone type (balanced/unbalanced)
Plug-in powered mic input (Stereo miniature phone type)
Audio Output Headphone jack (Stereo miniature phone type)
Nominal Input Level
(Variable) Analog inputs 1/L, 2/R:+4, -2, -8, -14, -20, -26, -32, -38, -44, -50, -56, -62 dBu
Plug-in powered mic input: LOW -7.5 dBu, MID -21 dBu, HIGH -26 dBu
* Input Level Knob : Center
Input Impedance Analog inputs 1/L, 2/R : 5k ohms
Plug-in powered mic input : 3k ohms (SENS = MID/HIGH), 2k ohms (SENS = LOW)
Maximum Input Analog inputs 1/L, 2/R : +24 dBu (SENS = +4 dBu)
Plug-in powered mic input : +4 dBu (SENS = LOW)
Output Level 35 mW + 35 mW (In case 16 ohms load)
Recommended Load Impedance 16 ohms or greater
Frequency Response 20 Hz to 40 kHz
Phantom Power 48 V + or - 4 V
10 mA or less in all channels
USB Interface Mini-B type connector
USB mass storage device class
USB audio (Hi-Speed USB)
Other
Display 160 x 160 dots graphic display (touch screen)
Power Supply AC adaptor
Alkaline battery (AA, LR6) x 4
or Rechargeable Ni-MH battery (AA, HR6) X 4
Current Draw 500 mA (MAX)
Accessories Owner's manual
SD Card
AC Adaptor
Power Cord
Cakewalk SONAR LE DVD-ROM (for Windows)
USB Cable (mini-B type)
Windscreen
Options
(sold separately) Cover/Windscreen Set: OP-R26CW
Binaural Microphones/Earphones: CS-10EM
Stereo Shotgun Microphone: CS-50
Stereo Microphone: CS-15S
Stereo Headphones: RH-300
Microphone Stand Adaptor: OP-MSA1
Microphone Stand: ST-100MB
Size and Weight
Width
82 mm 3-1/4 inches
Depth
180 mm 7-1/8 inches
Height
41 mm 1-5/8 inches
Weight
370 g 0 lbs. 14 oz.
